Friction Electric Winch
Rated load: 550 KN
Rated speed: 5 m/min
Rope capacity: 2000 m
Rope diameter: 60 mm
Product Overview
Friction Electric Winch is mainly used for the drawing and lifting of long travel distance of all kinds of large and super large concrete and steel structure and cable.
The characteristic is that the speed of lifting rope is constant and the lifting is smoothly operating.It is applicable to various bridge, port and dock engineering and construction of large-scale bridge and large factory, power engineering equipment installation.
Product Specifications
| Type basic date | Rated load | Rated speed | Rope capacity (m) |
Rope diameter | Electric motor type | Electric motor power (KN) |
Orm dimension (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| JMM 10 | 100 | 10 | 4800 | 30 | YZR225M-6 | 30 | 1980*2650*850 | 6000 |
| JMM 16 | 160 | 11 | 1000 | 34.5 | YZR225M2-6 | 45 | 3350*1920*1320 | 9500 |
| JMM 20 | 200 | 11 | 3600 | 39 | YZR280S-6 | 55 | 3500*1960*1320 | 10000 |
| JMM 32 | 320 | 10 | 3200 | 52 | YZR280M-6 | 75 | 4330*2350*1760 | 16000 |
| JMM 55 | 550 | 5 | 2000 | 60 | YZR280M-6 | 75 | 5000*2800*1900 | 22000 |

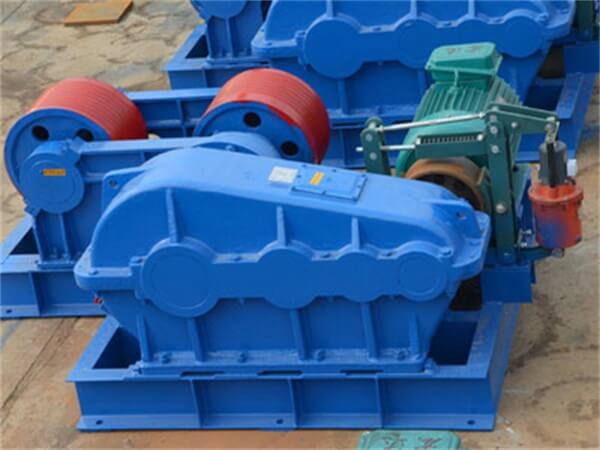

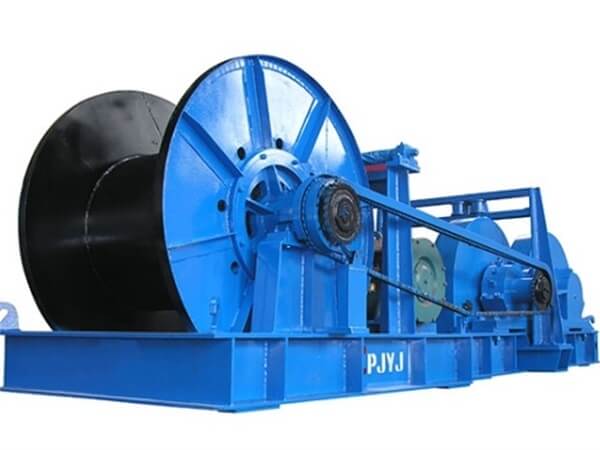

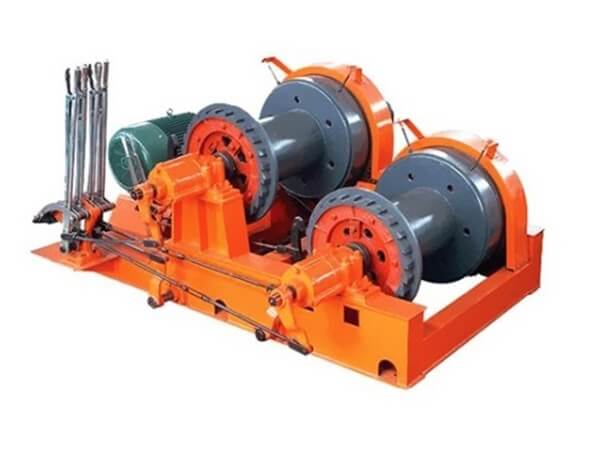

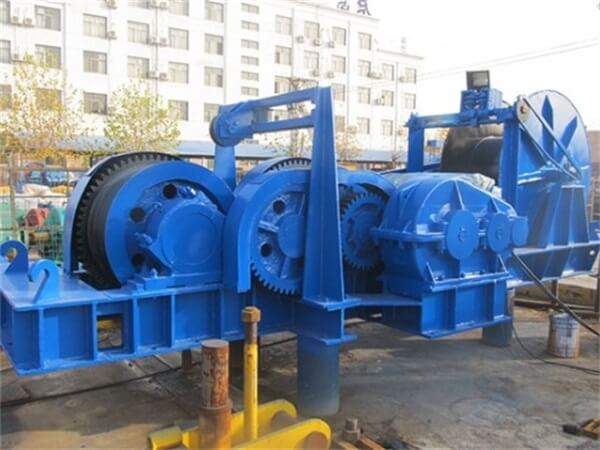

Product Display
