High Speed Electric Winch
Rated load: 5 KN
Rated speed: 22 m/min
Rope capacity: 190 m
Rope diameter: 7.7 mm
Product Overview
High Speed Electric Winch is gear reducer transmission type electric winch.
This series of electric winch is mainly used to drag heavy object or lift material in building construction, it also could be used as lifting unit of crane. Meanwhile, they are also the special purposed winch for derrick, portal frame and lifting trolley.
Control way: push button control, cam control and remote control.
Product Specifications
| Type basic date | Rated load | Rated speed | Rope capacity (m) |
Rope diameter | Electric motor type | Electric motor power (KN) |
Orm dimension (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JK8 | 80 | 25 | 160 | 26 | YZR210S-8 | 45 | 1533*1985*1045 | 3000 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |

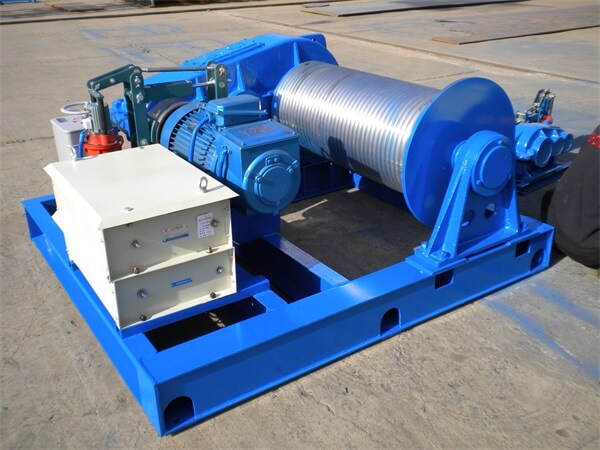

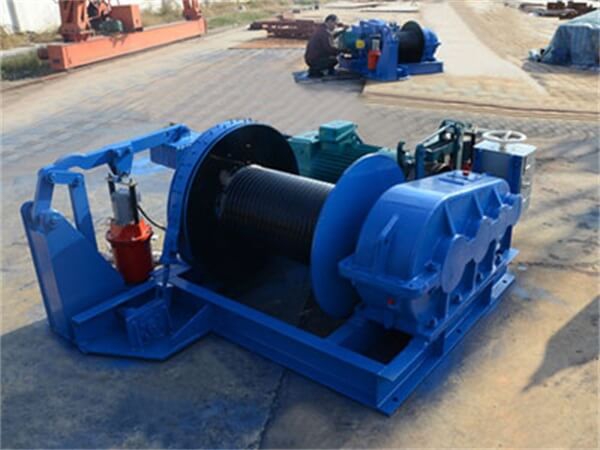

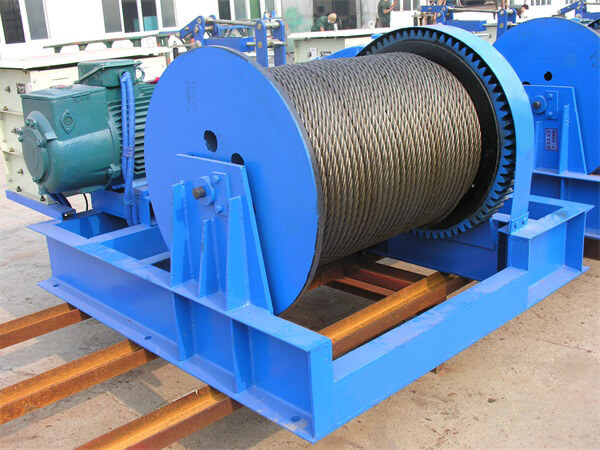

Product Display
