Low Speed Electric Winch
Rated load: 10 KN
Rated speed: 15 m/min
Rope capacity: 100 m
Rope diameter: 9.3 mm
Product Overview
Low Speed Electric Winch is gear reducer transmission type electric winch.
This series of electric winch is mainly composed by drum, motor, brake, reducer, wire rope, foundation, optional rope spooling device, etc.
This winch is mainly used to pull or lift heavy objects in road and bridge projects, civil construction, mining area, factory, port, marine, such as installation and disassembly of all kinds of large or super large size steel structure and machinery equipments, reinforce concrete, drag ships, the features are orderly wire rope, safe and reliable lifting, speed is usually not more than 12m/min.
Product Specifications
| Type basic date | Rated load | Rated speed | Rope capacity (m) |
Rope diameter | Electric motor type | Electric motor power (KN) |
Orm dimension (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
| JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 |
| JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM13.5 | 135 | 0-5 | 290 | 28 | YZP225S-8 | 22 | 2990*2363*1650 | 6500 |
| JM16 | 160 | 10 | 500 | 37 | YZR250M2-6 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | 48 | YZR280M-6 | 55 | 4350*2800*2100 | 13500 |
| JM32 | 320 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2100 | 14800 |
| JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
| JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |

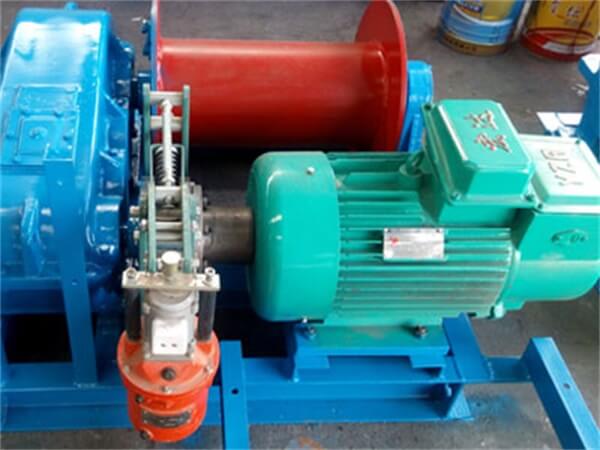

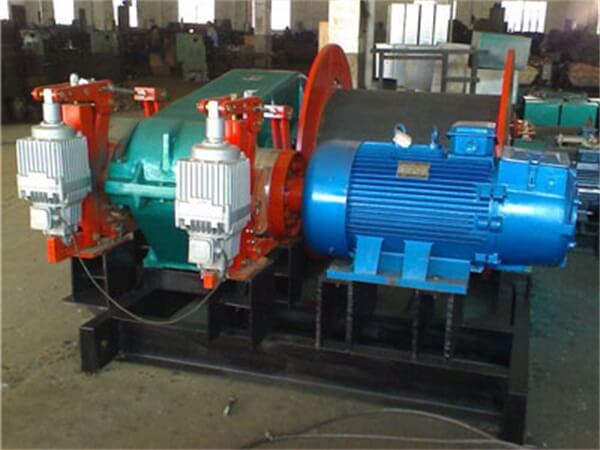

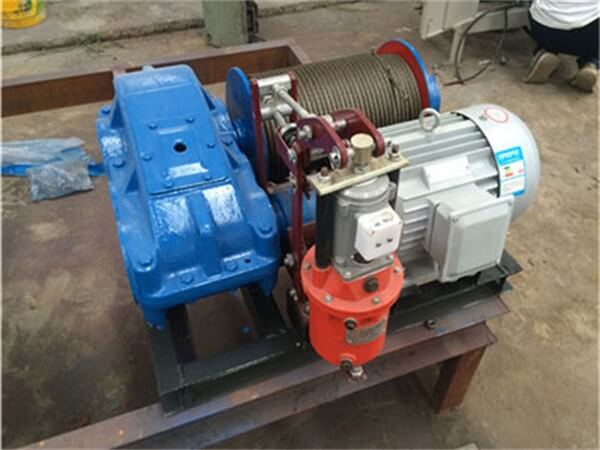

Product Display
