L Type Single Girder Gantry Crane

L Type Single Girder Gantry Crane

L type single girder gantry crane with hook is applied for handling and convey operation outdoors, or at warehouse, stock ground, railway station, sea port cargo area, etc.

This gantry crane has the features of easy installation, big clearance, good operation vison, integrated console control and reasonable whole institutional arrangement.

Product Overview

L type single girder gantry crane is composed of bridge, L type support leg, crane travelling organ, trolley, electric equipment. The frame adopts box-type welding mechanism, the L type single leg is welding structure in order to increases the work space, and it is convenient for the transportation, installment and maintains.

L type single girder gantry crane with hook is applied for handling and convey operation outdoors, or at warehouse, stock ground, railway station, sea port cargo area, etc. This single girder gantry crane can be also used to do some special operations with a variety of special spreaders.

Product Features

♦ Light structure, easy installation and maintenance

♦ Reasonable structure, strong bearing capacity

♦ Low noise, soft starting and stopping

♦ Low cost maintenance, long working life

♦ Strong box type, welding by machine hand

Product Specifications

Capacity
 T 5
Span m 18 22 26 30 35
Lifting height m 10/11
Lifting speed m/min 9.2
Trolley travelling speed m/min 36.6
Crane travelling speed m/min 46.25 40.1
Max. Wheel load KN 160 166 185 213 233
Rail recommended Model 43kg/m
Total motor power kw 27.8 36.8
Main dimension (mm) Span(m) 18 22 26 30 35
Rail top to crane top H 12590 13590
Rail top to hook center H4 10 11
Crane base distance W 6500 7000
Crane width B 8000 8650
Trolley rail distance K 899 999 1149 1249
Hook left limitation S1 6700 8700
Hook right limitation S2 7000 9400
Capacity T 10
Span m 18 22 26 30 35
Lifting height m 10/11
Lifting speed m/min 8.5
Trolley travelling speed m/min 39.7
Crane travelling speed m/min 39.6 40.1
Max. Wheel load KN 177 182 189 215 222
Rail recommended Model 43kg/m
Total motor power kw 38 47
Main dimension (mm) Span(m) 18 22 26 30 35
Rail top to crane top H 13600 14600
Rail top to hook center H4 10 11
Crane base distance W 8730 9230
Crane width B 7000 7500
Trolley rail distance K 1050 1150 1350
Hook left limitation S1 7000 9000
Hook right limitation S2 7000 9300
Capacity T 16
Span m 18 22 26 30 35
Lifting height m 10/11
Lifting speed m/min 7.9/11.2
Trolley travelling speed m/min 39.5
Crane travelling speed m/min 40.1 47.1
Max. Wheel load KN 298 306 307 370 383
Rail recommended Model 43kg/m
Total motor power kw 64.6 75.6
Main dimension (mm) Span(m) 18 22 26 30 35
Rail top to crane top H 13850 14850
Rail top to hook center H4 10 11
Crane base distance W 7000 7500 7500
Crane width B 8750 9250 9500
Trolley rail distance K 1150 1250 1350 1450
Hook left limitation S1 7200 9200
Hook right limitation S2 7800 10500
Capacity T 20
Span m 18 22 26 30 35
Lifting height m 10/11
Lifting speed m/min 7.1/9.2
Trolley travelling speed m/min 39.3
Crane travelling speed m/min 40.1 47.1
Max. Wheel load KN 340 346 362 419 432
Rail recommended Model 43kg/m
Total motor power kw 67.3 78.3
Main dimension (mm) Span(m) 18 22 26 30 35
Rail top to crane top H 13860 14860
Rail top to hook center H4 10 11
Crane base distance W 7500 8000
Crane width B 9250 10000
Trolley rail distance K 1250 1350 1550
Hook left limitation S1 7200 9200
Hook right limitation S2 7900 10400
Capacity T 32
Span m 18 22 26 30 35
Lifting height m 10.85/11.85
Lifting speed m/min 6.3/9.2
Trolley travelling speed m/min 38.6
Crane travelling speed m/min 48.2 38.6
Max. Wheel load KN 457 470 250 265 285
Rail recommended Model QU80
Total motor power kw 85.5 93.5
Main dimension (mm) Span(m) 18 22 26 30 35
Rail top to crane top H 14380 14380 15180
Rail top to hook center H4 10 11
Crane base distance W 8000 8500
Crane width B 10006 11452
Hook left limitation S1 8000 10000
Hook right limitation S2 8000 10000
Capacity T 50
Span m 18 22 26 30 35
Lifting height m 10/12
Lifting speed m/min 5.9/8.5
Trolley travelling speed m/min 38.5
Crane travelling speed m/min 39.7
Max. Wheel load KN 350 355 359 363 378
Rail recommended Model QU80
Total motor power kw 141
Main dimension (mm) Span(m) 18 22 26 30 35
Rail top to crane top H 14750 16750
Rail top to hook center H4 10 12
Crane base distance W 8500 9000
Crane width B 12060 12560
Hook left limitation S1 8000 10000
Hook right limitation S2 8000 10000

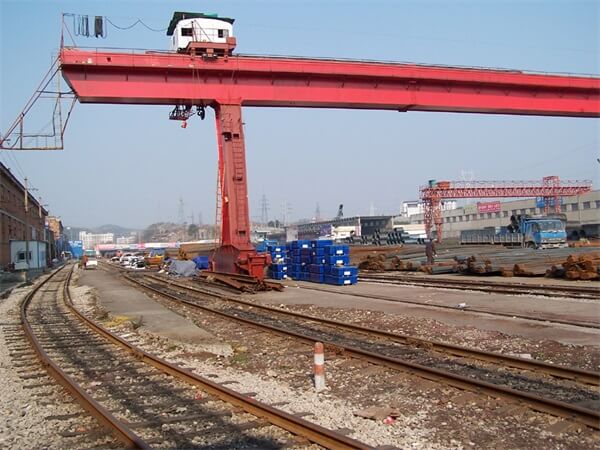

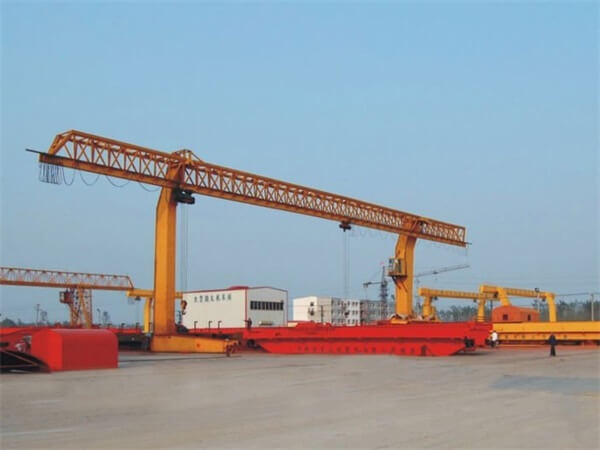

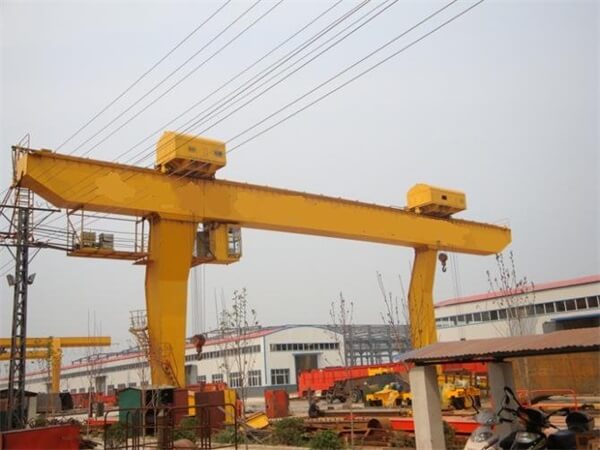

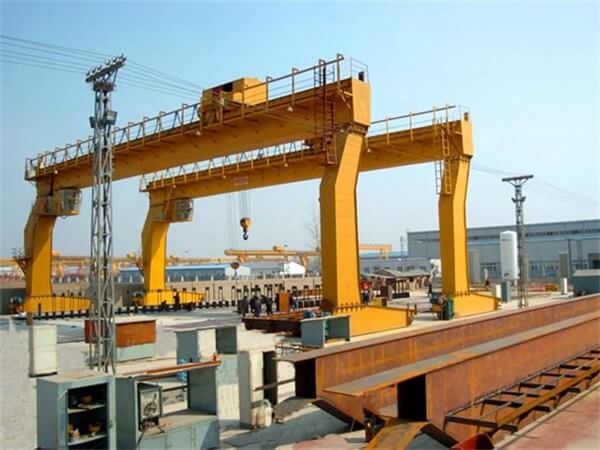

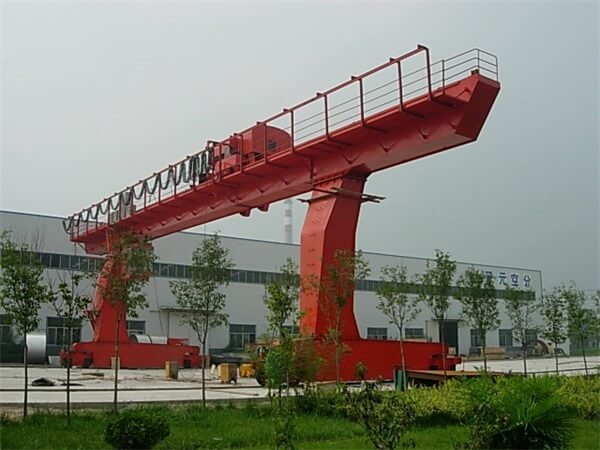

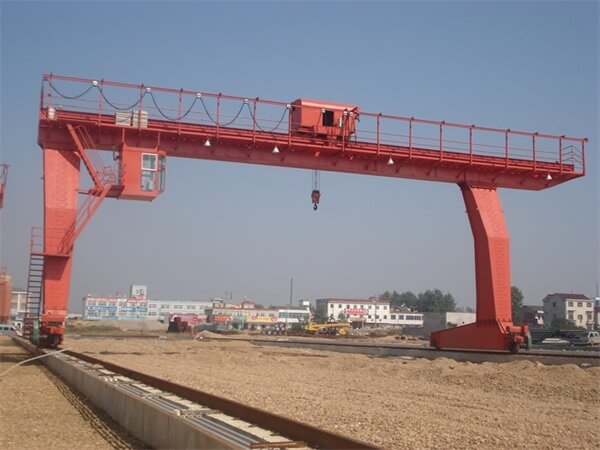

Product Display

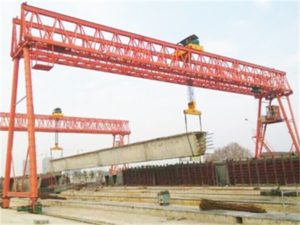

Related Projects
