CD1/MD1 Wire Rope Electric Hoist

CD1/MD1 Wire Rope Electric Hoist

Lifting Capacity: 0.5~32t
Lifting Height: 6~48m
Working Class: A4
Ambient Temp: -20~40℃

Product Overview

CD1/MD1 Wire Rope Electric Hoist is a small-sized lifting equipment, it can be mounted on single girder overhead crane, single girder gantry crane and jib crane. With slight modification, D1/MD1 Wire Rope Electric Hoist can be also used as winch.

Model CD1 hoist has only one normal speed, which can satisfy normal application. Model MD1 hoist has 2 working speeds: normal and low speed. At low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools. So MD1 model electric hoist is more widely used than CD1 model.

Product Specifications

Capacity T 0.5 1
Lifting height m 6 9 12 6 9 12 18 24 30
Lifting speed m/min 8(0.8/8) 8(0.8/8)
Trolley travelling speed m/min 20/30
Working duty / M4 M4
Wire rope diameter / 4.8 7.4
Min. curvature radius m 1.5 1.5 2 3 4
Lifting motor kw 0.8(0.4/0.8) 1.5(0.4/1.5)
Travelling motor kw 0.2 0.2
Rail Model 16-28b
CD1 Total weight kg 121 125 130 137 145 172 188 204 220
MD1 Total weight 138 142 147 164 174 199 215 231 247
Lifting height m 6 9 12 6 9 12 18 24 30
Travelling side width B 884 884
Hoist length L 616 688 760 758 856 954 1150 1346 1542
Hook upper limitation H 650 667 767
Capacity T 2 3
Lifting height m 6 9 12 18 24 30 6 9 12 18 24 30
Lifting speed m/min 8(0.8/8) 8(0.8/8)
Trolley travelling speed m/min 20/30
Working duty / M4 M4
Wire rope diameter / 11 13
Min. curvature radius m 2 2.5 3 4 2 2.5 3 4
Lifting motor kw 3.0(0.4/3.0) 4.5(0.4/4.5)
Travelling motor kw 0.4 0.4
Rail Model 20a-28b
CD1 Total weight kg 221 232 285 309 332 353 281 297 354 390 420 451
MD1Total weight 256 267 320 344 361 388 311 327 384 420 450 481
Lifting height m 6 9 12 18 24 30 6 9 12 18 24 30
Travelling side width B 930
Hoist length L 820 920 1020 1220 1420 1620 932 1035 1138 1344 1550 1756
Hook upper limitation H 840 950 954 1058
Capacity T 5 10
Lifting height m 6 9 12 18 24 30 9 12 18 24 30
Lifting speed m/min 8(0.8/8) 7(0.7/7)
Trolley travelling speed m/min 20/30
Working duty / M4 M4
Wire rope diameter / 15
Min. curvature radius m 2.5 3 4 4.5 6 3.5 4 6 7.5 9
Lifting motor kw 7.5(0.8/7.5) 13(2.2/13)
Travelling motor kw 0.8 0.8× 2
Rail Model 25a-45a 32b-45a
CD1 Total weight kg 437 495 597 646 686 726 1048 1098 1209 1301 1411
MD1 Total weight 508 532 654 703 743 783 1104 1154 1265 1366 1467
Lifting height m 6 9 12 18 24 30 9 12 18 24 30
Travelling side width B 1055
Hoist length L 1047 1157 1257 1467 1677 1887 1602 1783 2145 2507 2869
Hook upper limitation H 1120 1183 1350
Capacity T 16
Lifting height m 9 12 18 24 30
Lifting speed m/min 3.5(0.35/3.5)
Trolley travelling speed m/min 18
Working duty / M4
Wire rope diameter / 17.5
Min. curvature radius m 3.5 4 6 8 11
Lifting motor kw 13(2.2/13)
Travelling motor kw 0.8 2
Rail Model 32b-63c
CD1 Total weight kg 1130 1183 1286 1463 1563
MD1 Total weight 1220 1273 1376 1553 1653
Lifting height m 9 12 18 24 30
Travelling side width B 1055
Hoist length L 1872 2092 2532 2952 3387
Hook upper limitation H 2100
Capacity T 20
Lifting height m 9 12 18 24 9 12 15 18 21 24 27 30
Lifting speed m/min 3.3(0.33/3.3) 4.2(0.42/4.2)
Trolley travelling speed m/min 14 14
Working duty / M4 M4
Wire rope diameter / 21.5
Min. curvature radius m 3 4 5.5 7.6 3 3.5 4 5 6 7 8 9
Lifting motor kw 18.5(2.2/18.5)
Travelling motor kw 0.8
Rail Model 56a-63c
Total weight kg 2450 2620 2800 3250 1838 1927 2025 2169 2240 2320 2444 2527
Lifting height m 9 12 18 24 9 12 15 18 21 24 27 30
Travelling side width B 306~320 288~310
Hoist length L 1875 2108 2574 3040 1747 1942 2153 2364 2575 2786 2997 3208
Hook upper limitation H 2500(1300) 2300(1300)
Capacity T 32
Lifting height m 9 12 16 20 24
Lifting speed m/min 3(0.3/3)
Trolley travelling speed m/min 16
Working duty / M4
Wire rope diameter / 26
Min. curvature radius m 3.5 4.5 5.8 7.2 8.7
Lifting motor kw 18.5(2.2/18.5)
Travelling motor kw 1.5
Rail Model >63c
Total weight kg 2885 2950 3270 3495 3700
Lifting height m 9 12 16 20 24
Travelling side width B 320
Hoist length L 1913 2127 2412 2697 2982
Hook upper limitation H 2500(1500)

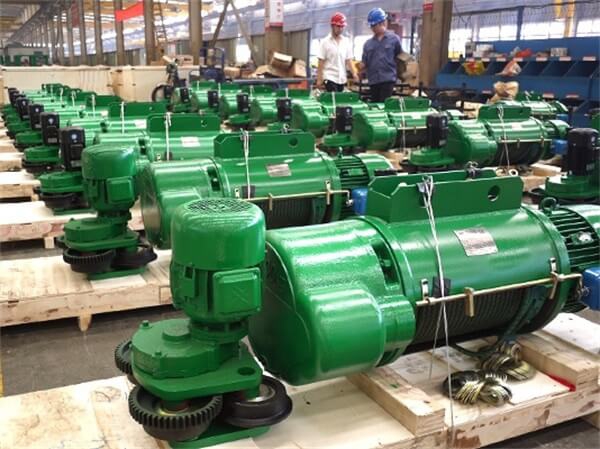

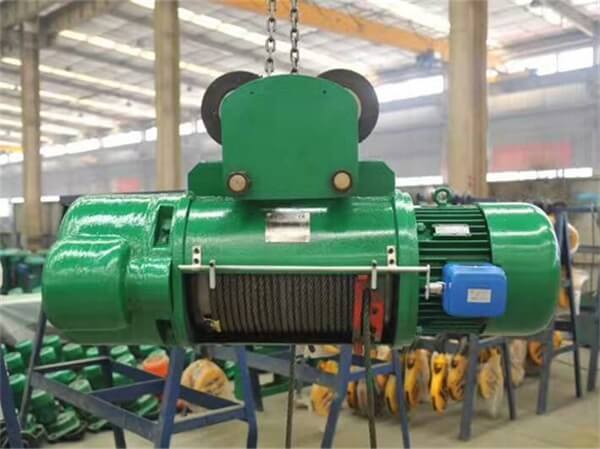

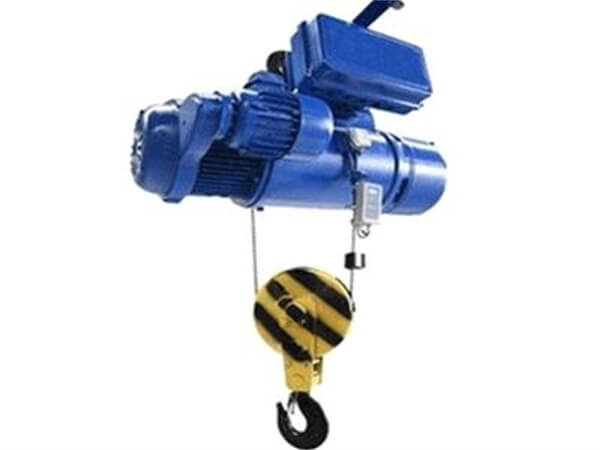

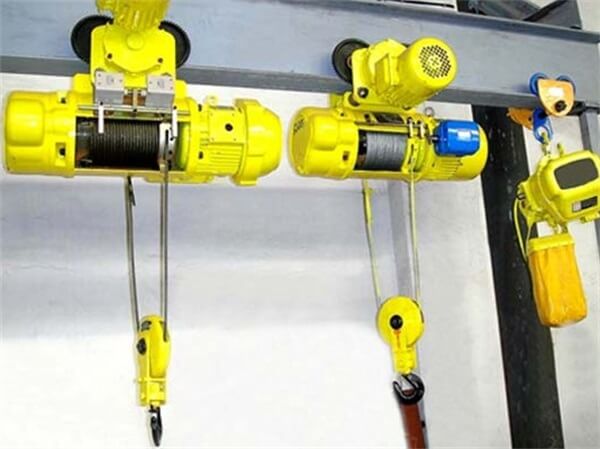

Product Display
