Electric Hoist Overhead Crane

Electric Hoist Overhead Crane

Lifting Weight: 5t-50t

Span: 10.5-31.5m

Lifting Height: 6~22m

Working Class: A4



Product Overview

Double Girder Overhead Crane with Electric Hoist is composed of box type bridge frame, lifting trolley, crane traveling mechanism and electrical system. And it used together with CD1/MD1 or HC/HM model electric hoist as a complete set, the capacity is from 5 tons to 50 tons, the span is 10.5-31.5m, the lifting height is 6~22 meters.

The structure, simple and convenient, features low entire height and light dead weight, so that it is applicable to operational sites of medium and small lifting load such as factories and mines, workshops.

Product Specifications

Capacity
 T 5
Span m 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Lifting height m 6/9/12/18/24/30
Lifting speed m/min 8or8（8/0.8）
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Total weight kg 5230 6400 7450 8600 10560 12350 14850
Max. Wheel load KN 39 43 48 53 59 62 71
Rail recommended Model 38kg/m
Total motor power kw 8.3
Main dimension (mm) Span(m) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Rail top to crane top H 1350 1550
Rail top to hook center H4 385 540
Crane base distance W 2700-3100 3200-3600 3800
Crane width B 3200-3900 3700-4200 5300
Trolley rail distance K 1400-1800
Hook left limitation S1 1200 1200
Hook right limitation S2 1200 1200
Capacity T 10/3
Span m 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Lifting height m 9/12/18/24
Lifting speed m/min 7(7/0.7) or8(8/0.8）
Trolley travelling speed m/min 20
Crane travelling speed m/min 20;30
Total weight kg 6240 8050 9480 10450 13260 16530 18620
Max. Wheel load KN 65 72 77 80 88 97 102
Rail recommended Model 38kg/m
Total motor power kw 8.3
Main dimension (mm) Span(m) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Rail top to crane top H 1450 1650
Rail top to hook center H4 365 565
Crane base distance W 3000-4200
Crane width B 3500-5696
Trolley rail distance K 1600-2250
Hook left limitation S1 1250 900
Hook right limitation S2 1400 1200
Capacity T 16/3
Span m 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Lifting height m 9/12/18/24
Lifting speed m/min 3.5(3.5/0.35) or8(8/0.8）
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Total weight kg 7970 8610 9990 12800 15300 17540 20080
Max. Wheel load KN 95 102 110 119 127 134 141
Rail recommended Model 38kg/m
Total motor power kw 13.8
Main dimension (mm) Span(m) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Rail top to crane top H 1450 1650
Rail top to hook center H4 -500 -310
Crane base distance W 3000-4200
Crane width B 3500-5696
Trolley rail distance K 1600-2250
Hook left limitation S1 1240 900
Hook right limitation S2 1450 1200
Capacity T 20/5
Span m 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Lifting height m 9/12/18/24
Lifting speed m/min 3.5(3.5/0.35) or8(8/0.8）
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Total weight kg 10500 11500 13640 15980 17700 20300 22920
Max. Wheel load KN 118 129 135 148 156 164 169
Rail recommended Model 38kg/m
Total motor power kw 19.3
Main dimension (mm) Span(m) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Rail top to crane top H 1790
Rail top to hook center H4 -350
Crane base distance W 3750-4500
Crane width B 4632-5982
Trolley rail distance K 1600-2550
Hook left limitation S1 1100
Hook right limitation S2 1100
Capacity T 32/10
Span m 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Lifting height m 9/12/16/24
Lifting speed m/min 3(3/0.3) or7(7/0.7）
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Total weight kg 12530 14660 16360 18870 21650 24260 27060
Max. Wheel load KN 167 184 196 206 215 224 233
Rail recommended Model 43kg/m
Total motor power kw 20
Main dimension (mm) Span(m) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Rail top to crane top H 1900
Rail top to hook center H4 -700
Crane base distance W 1600-2500
Crane width B 5070-5960 5572-6222
Trolley rail distance K 1600-2550
Hook left limitation S1 1100
Hook right limitation S2 1600

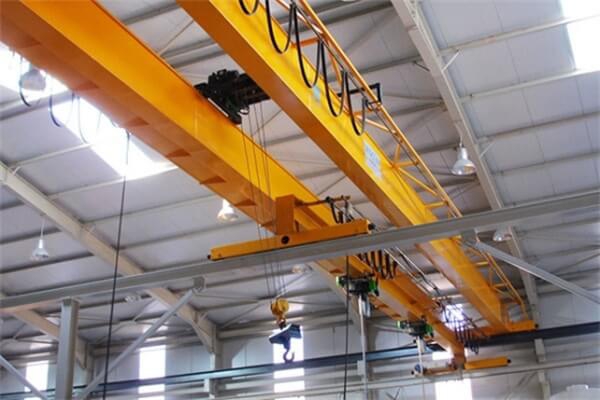

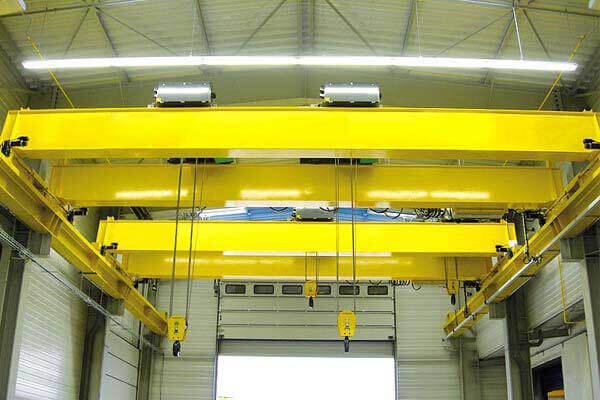

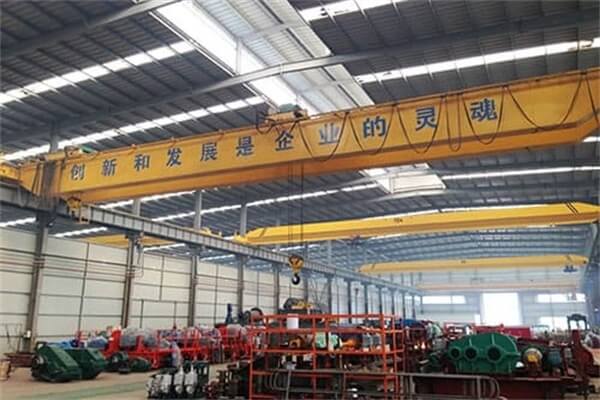

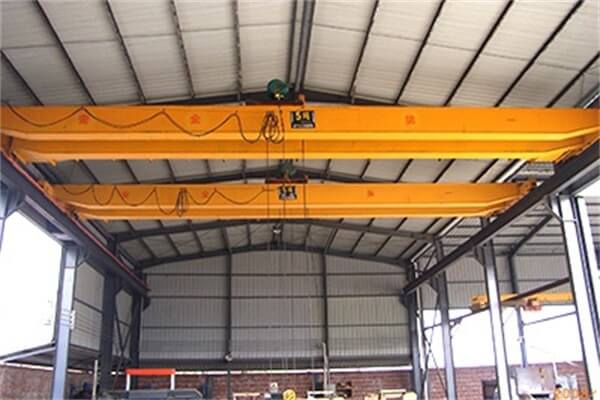

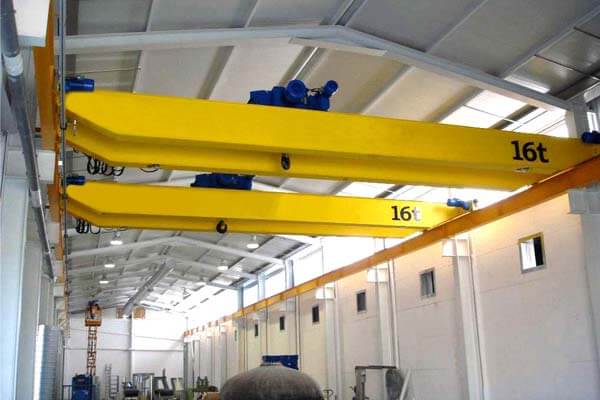

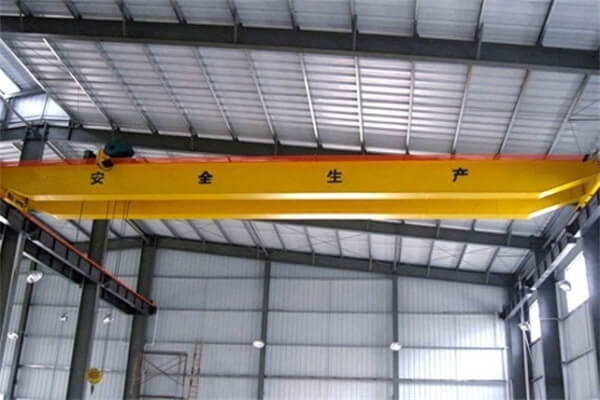

Product Display
