Explosion-proof Overhead Crane

Explosion-proof Overhead Crane

Lifting Capacity: 5~50 t

Span: 10.5~31.5 m

Lifting Height: 6~18 m

Working Class: A5~A8

Product Overview

Explosion-proof Overhead Crane mainly consists of bridge structure, crane travelling mechanism, electric equipment etc.

This product is suitable for areas where the explosion, transmission is not higher than ⅡB or ⅡC and the ignition temperature group of inflammable gas or explosive mixture of steam and gas is not lower than T4. Applicable dangerous zones are zone 1 and zone 2.

Product Specifications

Capacity
 T 5
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 16m
Lifting speed m/min 15.5
Trolley travelling speed m/min 19.6(14.6)
Crane travelling speed m/min 22.3(12)
Total weight kg 12700 14200 16100 18600 21000 25400 28500 31400
Max. Wheel load KN 72 78 84 92 97 109 117 124
Rail recommended Model 43kg/m
Total motor power kw 10
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 1763
Rail top to hook center H4 71
Crane base distance W 3400 3550 5000
Crane width B 5054 5204 5948
Trolley rail distance K 1400
Hook left limitation S1 800
Hook right limitation S2 1250
Capacity T 10
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 16m
Lifting speed m/min 15.5
Trolley travelling speed m/min 20.5(14.6)
Crane travelling speed m/min 22.3(12) 19(14.5)
Total weight kg 14300 16100 18900 20600 23200 27600 31000 34400
Max. Wheel load KN 101 108 117 122 126 135 144 152
Rail recommended Model 43kg/m
Total motor power kw 15.5
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 1800
Rail top to hook center H4 602/552
Crane base distance W 4050 5000
Crane width B 5704 5882 5948
Trolley rail distance K 2000
Hook left limitation S1 1050
Hook right limitation S2 1300
Capacity T 16/3.2
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m/a 16m/18m
Lifting speed m/min 15.5
Trolley travelling speed m/min 20.5(13)
Crane travelling speed m/min 19(14.5) 17(14.5)
Total weight kg 19100 20300 23400 26400 28800 33100 36300 39400
Max. Wheel load KN 138 146 152 166 173 185 194 203
Rail recommended Model 43kg/m
Total motor power kw 23.9(23.2)
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 2043/2043
Rail top to hook center H4 860/780
Crane base distance W 4000 4100 5000
Crane width B 5864 5928 6438
Trolley rail distance K 2000
Hook left limitation S1/S2 1040/1850
Hook right limitation S3/S4 1500/2310
Capacity T 20/5
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m/a 12m/14m
Lifting speed m/min 15.5
Trolley travelling speed m/min 20.5(14.6)
Crane travelling speed m/min 19(14.5) 17(14.5)
Total weight kg 19900 21300 23500 27700 30300 34600 38300 41500
Max. Wheel load KN 160 167 176 189 197 209 220 229
Rail recommended Model 43kg/m
Total motor power kw 25.7(25)
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 2045/2045
Rail top to hook center H4 858/858
Crane base distance W 4000 4100 5000
Crane width B 5864 5928 6438
Trolley rail distance K 2000
Hook left limitation S1/S2 1030/1930
Hook right limitation S3/S4 1420/2320
Capacity T 32/5
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m/a 16m/18m
Lifting speed m/min 15.5
Trolley travelling speed m/min 20(12.3)
Crane travelling speed m/min 17(14.5) 19.4(14.5)
Total weight kg 26900 28600 32100 35500 39800 44900 49200 52700
Max. Wheel load KN 234 248 260 275 287 303 314 325
Rail recommended Model 43kg/m
Total motor power kw 42.2(40.7) 43.6(40.7)
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 2230
Rail top to hook center H4 800
Crane base distance W 4650 4700 5000
Crane width B 6478 6628 6928
Trolley rail distance K 2500
Hook left limitation S1/S2 1070/2050
Hook right limitation S3/S4 1700/2680
Capacity T 50/10
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m/a 12m/16m
Lifting speed m/min 15.5
Trolley travelling speed m/min 19.1(15.3)
Crane travelling speed m/min 19.4(14.4) 19.3(14.4)
Total weight kg 35300 37800 42000 46100 50100 55600 59600 64900
Max. Wheel load KN 333 354 373 385 404 421 434 450
Rail recommended Model 43kg/m
Total motor power kw 23.9(23.2)
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 2744 2750
Rail top to hook center H4 1020 1014
Crane base distance W 4800 5000
Crane width B 6828 6858 7058
Trolley rail distance K 2500
Hook left limitation S1/S2 1005/2200
Hook right limitation S3/S4 2000/3195
Capacity T 75/20
Span m 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m/a 20/22
Lifting speed m/min 1.86/4.2
Trolley travelling speed m/min 10
Crane travelling speed m/min 15.4;(9.88) 15.7(9.9)
Total weight kg 26900 28600 32100 35500 39800 44900 49200
Max. Wheel load KN 219 302 314 324 333 345 356
Rail recommended Model 43kg/m
Main dimension (mm) Span(m) 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 3422 3422 3426 3430 3428 3432 3434
Rail top to hook center H4 1588 1588 1584 1580 1582 1578 1576

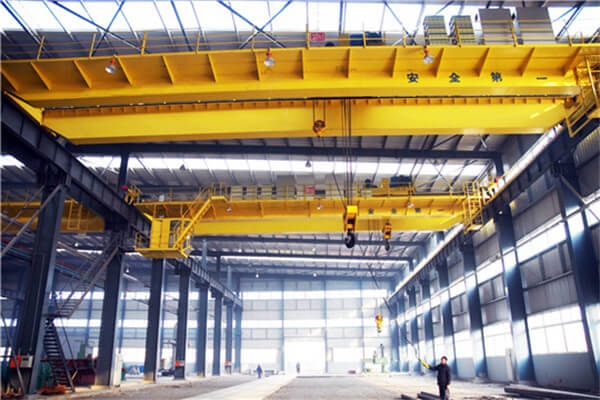

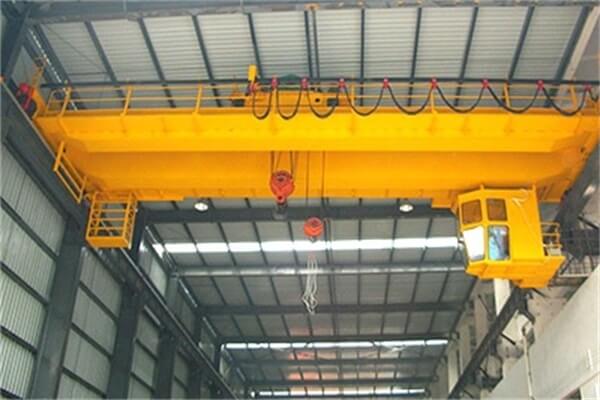

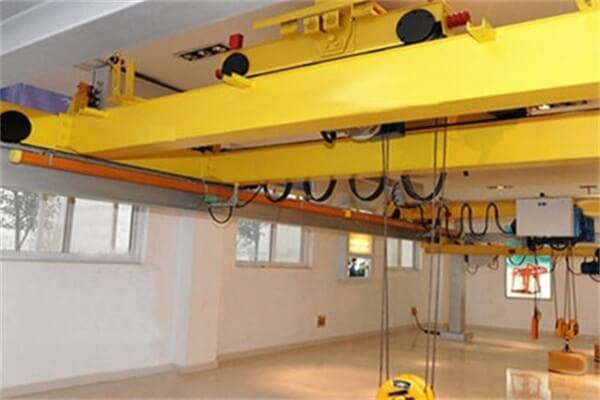

Product Display
