Overhead Crane with Hook

Overhead Crane with Hook

Lifting Capacity: 5~50t

Span: 10.5~31.5m

Lifting Height: 6~18m

Working Class: A5~A7

Product Overview

The Overhead Crane with Hook is consisted of crane bridge, crane traveling mechanism, trolley, electrical equipment, crane hook, etc.

As one of the most frequently used material handling equipment, Overhead Crane with Hook is an overhead crane with the hook as the lifting tool. The lifting capacity of the hook overhead crane is 5 to 50 tons, and the working class is A5 to A7.

The Overhead Crane with Hook is widely used to load and transport normal weight in the fixed crossing space and in various special purpose hoists in special operations.

Product Specifications

Capacity
 T 5
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 16
Lifting speed m/min 15.5
Trolley travelling speed m/min 37.2
Crane travelling speed m/min 115.6 116.8
Total weight kg 12291 14509 16337 19027 21395 25584 28707 31596
Max. Wheel load KN 73 79 85 93 98 110 118 125
Rail recommended Model 43kg/m
Total motor power kw 27.8 31.8
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 1763
Rail top to hook center H4 71
Crane base distance W 3400 3550 5000
Crane width B 5058 5208 6028
Trolley rail distance K 1400
Hook left limitation S1 800
Hook right limitation S2 1250
Capacity T 10
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 16
Lifting speed m/min 13.3
Trolley travelling speed m/min 43.8
Crane travelling speed m/min 115.6 116.8 112.5
Total weight kg 14719 16600 19330 21034 23523 27889 31280 34699
Max. Wheel load KN 102 109 118 123 130 143 152 160
Rail recommended Model 43kg/m
Total motor power kw 35.5 39.5
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 1876 1926
Rail top to hook center H4 602 552
Crane base distance W 4050 5000
Crane width B 57088 5848 6388
Trolley rail distance K 2000
Hook left limitation S1 1050
Hook right limitation S2 1300
Capacity T 16/3.2
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 16/18
Lifting speed m/min 13/14.5
Trolley travelling speed m/min 44.6
Crane travelling speed m/min 112.5 101.4
Total weight kg 20045 21474 23629 27912 30413 34464 37967 41315
Max. Wheel load KN 145 152 160 172 180 191 201 211
Rail recommended Model 43kg/m Or QU70
Total motor power kw 64.5 71.5
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 2095 2097 2187 2185
Rail top to hook center H4 729 127 637 639
Crane base distance W 4400 5000
Crane width B 6278 6188 6798
Trolley rail distance K 2000
Hook left limitation S1/S2 1040/1850
Hook right limitation S3/S4 1500/2310
Capacity T 20/5
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 12/14
Lifting speed m/min 9.7/12.7
Trolley travelling speed m/min 44.6
Crane travelling speed m/min 112.5 101.4
Total weight kg 20984 22802 25190 29689 32426 36791 40589 44225
Max. Wheel load KN 167 174 183 197 205 218 229 239
Rail recommended Model 43kg/m Or QU70
Total motor power kw 69 76
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 2097 2099 2189
Rail top to hook center H4 701 699 609
Crane base distance W 4400 5000
Crane width B 6278 6188 6798
Trolley rail distance K 2000
Hook left limitation S1/S2 1030/1930
Hook right limitation S3/S4 1420/2320
Capacity T 32/5
Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 16/18
Lifting speed m/min 9.5/12.7
Trolley travelling speed m/min 42.4
Crane travelling speed m/min 101.4 101.8 86.8
Total weight kg 28061 30292 33412 38607 42832 47023 50586 55272
Max. Wheel load KN 240 254 267 284 296 311 321 333
Rail recommended Model QU70 Or square steel 90
Total motor power kw 96.3
Main dimension (mm) Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 2347 2351 2481
Rail top to hook center H4 705 701 571
Crane base distance W 4650 4700 5000
Crane width B 6588 6608 6828
Trolley rail distance K 2500
Hook left limitation S1/S2 1070/2050
Hook right limitation S3/S4 1700/2680
Capacity T 75/20
Span m 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 20/22
Lifting speed m/min 5/7.2
Trolley travelling speed m/min 38.4
Crane travelling speed m/min 77.8 67
Total weight kg 65020 69341 74406 80275 85148 92155 97293
Max. Wheel load KN 283 300 311 323 333 344 354
Rail recommended Model QU100
Total motor power kw 158
Main dimension (mm) Span(m) 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to crane top H 3294 3298 3302 3300 3304 3306
Rail top to hook center H4 1586 1582 1578 1580 1576 1574
Crane width B 8728
Trolley rail distance K 4400
Hook left limitation S1/S2 1015/2450
Hook right limitation S3/S4 1990/3425

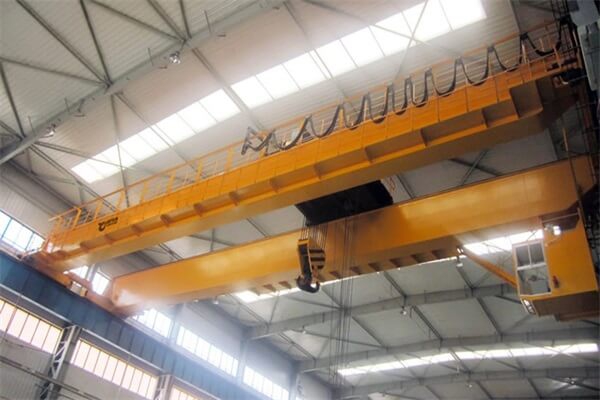

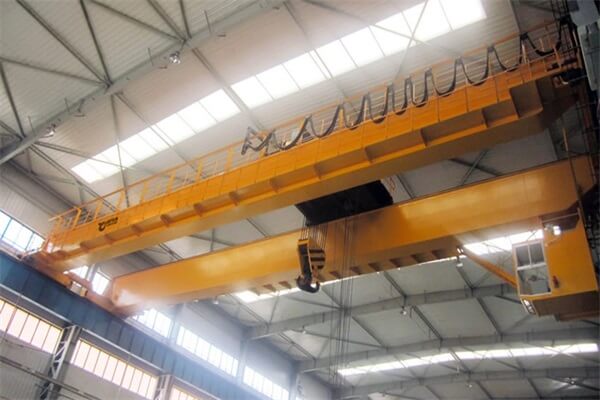

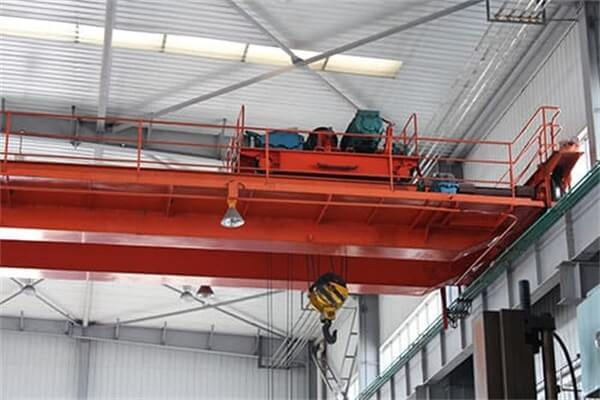

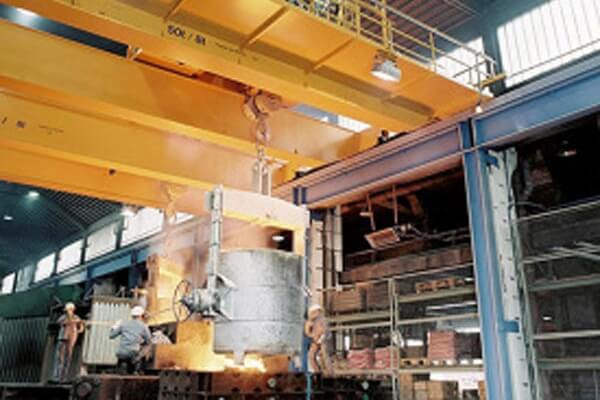

Product Display
