Electric Hoist Overhead Crane

Electric Hoist Overhead Crane

Lifting capacity: 1～30t

Span: 6~30m

Lifting height: 6~25m

Working Class: A3, A4

Product Overview

The Electric Hoist Single Girder Overhead Crane is a light small lifting crane, designed and produced according to national standards, equipped with electric hoists as the lifting mechanism.

The matched electric hoists have CD1 model, MD1 model, etc. The lifting capacity of the Electric Hoist Overhead Crane is 3 to 35 tons and the working class is A3 and A4.

The Electric Hoist Overhead Crane is used to lift loads in the various environment, such as factory, ware house, stockyard, etc. However, they are banned to be used in some dangerous environment, such as, combustible environment and explosive environment, etc.

Product Specifications

Capacity
 T 1
Span m 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Lifting height m 6、 9、 12、18、 24、 30
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20
Crane travelling speed m/min 20
Total weight kg 1590 1960 2390 2850 3060 3550 4610 5660
Max. Wheel load KN 8.7 9.9 11 12.2 12.8 14 16.7 19.4
Rail recommended Model 24kg/m
Total motor power kw 1.7
Main dimension (mm) Span (m) 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Rail top to crane top H 490 530 580 660 745
Rail top to hook center H4 910 955 970 990 1010
Crane base distance W 1500 2000 2000 2500 2500 3000 3500 4000
Crane width B 2000 2500 2500 3000 3000 3500 4000 4500
Hook left limitation S1 796
Hook right limitation S2 1274
Capacity T 2
Span m 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Lifting height m 6、 9、 12、18、 24、 30
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20
Crane travelling speed m/min 20
Total weight kg 1680 2140 2670 3480 3760 4400 5680 6850
Max. Wheel load KN 13.6 15.2 16.7 18.8 19.5 21.2 24.4 27.4
Rail recommended Model 24kg/m
Total motor power kw 3.4
Main dimension (mm) Span (m) 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Rail top to crane top H 490 580 660 785 820 875
Rail top to hook center H4 1080 1125 1140 1160 1135 1200 1250
Crane base distance W 1500 2000 2500 3000 3500 4000
Crane width B 2000 2500 3000 3500 4000 4500
Hook left limitation S1 796
Hook right limitation S2 1274
Capacity T 3
Span m 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Lifting height m 6、 9、 12、18、 24、 30
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20 、30
Crane travelling speed m/min 20 30
Total weight kg 1860 2350 3120 3680 3970 5170 59500 8100
Max. Wheel load KN 18.6 20.5 22.6 24.2 25 28.1 30.1 35.5
Rail recommended Model 24kg/m
Total motor power kw 4.9
Main dimension (mm) Span(m) 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Rail top to crane top H 530 580 660 725 835 880 940
Rail top to hook center H4 1270 1290 1305 1295 1330 1370
Crane base distance W 1500 2000 2500 3000 3500 4000
Crane width B 2000 2500 3000 3500 4000 4500
Hook left limitation S1 819
Hook right limitation S2 1291
Capacity T 5
Span m 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Lifting height m 6、 9、 12、18、 24、 30
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20 、30
Crane travelling speed m/min 20 30
Total weight kg 2220 2860 3430 4440 4790 5550 68000 8990
Max. Wheel load KN 28.7 31.4 33.2 36 37 39.1 42.3 47.9
Rail recommended Model 24kg/m
Total motor power kw 8.3
Main dimension (mm) Span(m) 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Rail top to crane top H 580 660 725 835 880 940 1020
Rail top to hook center H4 1460 1460 1475 1465 1500 1540 1520
Crane base distance W 1500 2000 2500 3000 3500 4000
Crane width B 2000 2500 3000 3500 4000 4500
Hook left limitation S1 842
Hook right limitation S2 1310
Capacity T 10
Span m 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Lifting height m 6、 9、 12、18、 24、 30
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20 、30
Crane travelling speed m/min 20 30
Total weight kg 3060 3950 4640 5590 6010 7420 9220 14000
Max. Wheel load KN 50.8 56.4 59.4 62.5 64 68 74.1 85.1
Rail recommended Model 24kg/m
Total motor power kw 13.8
Main dimension (mm) Span(m) 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Rail top to crane top H 735 835 890 880 920 1065 1160
Rail top to hook center H4 1815 1815 1840 1950 1970 1865 1890
Crane base distance W 1500 2000 2500 3000 3500 4000
Crane width B 2000 2500 3000 3500 4000 4700
Hook left limitation S1 1293
Hook right limitation S2 1893
Capacity T 16
Span m 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Lifting height m 6、 9、 12、18、 24、 30
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20 、30
Crane travelling speed m/min 20 30
Total weight kg 3390 4420 5760 7350 7940 9210 13170 15300
Max. Wheel load KN 76.5 84.3 89.6 94.9 97 100.9 111.4 117.2
Rail recommended Model 24kg/m
Total motor power kw 13.8
Main dimension (mm) Span(m) 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Rail top to crane top H 835 890 980 1065 1135 1200 1300
Rail top to hook center H4 2445 2470 2520 2495 2545 2590 2600
Crane base distance W 1500 2000 2500 3000 3500 4000
Crane width B 2000 2500 3000 3500 4200 4700
Hook left limitation S1 1293
Hook right limitation S2 1893
Capacity T 20
Span m 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Lifting height m 6、 9、 12、18、 24、 30
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20 、30
Crane travelling speed m/min 20 30
Total weight kg 5270 6710 8550 10110 10850 12600 14280 14690
Max. Wheel load KN 99 109.1 116.3 121.8 124.5 129.9 134.5 135.8
Rail recommended Model 24kg/m
Total motor power kw 19.3
Main dimension (mm) Span(m) 7.5 11.5 14.5 17.5 19.5 22.5 25.5 28.5
Rail top to crane top H 900 970 1050 1130 1200 1300
Rail top to hook center H4 2400 2430 2490 2550 2590 2600
Crane base distance W 2000 2000 2500 3000 3500
Crane width B 2700 3200 3700 4200
Hook left limitation S1 1394
Hook right limitation S2 1933

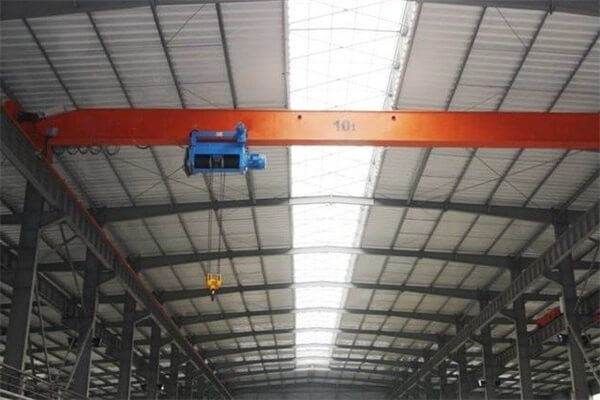

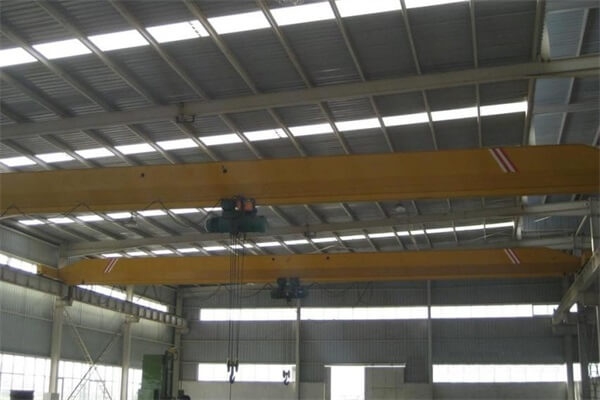

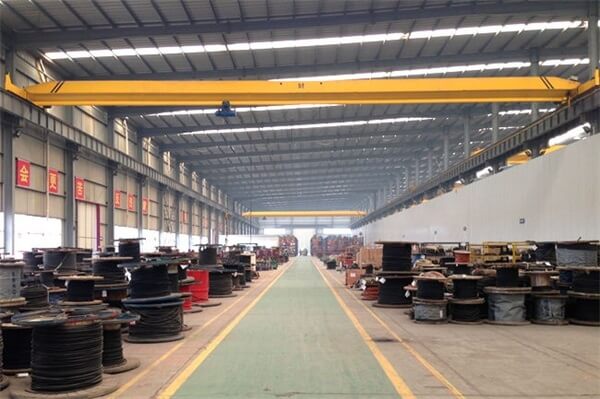

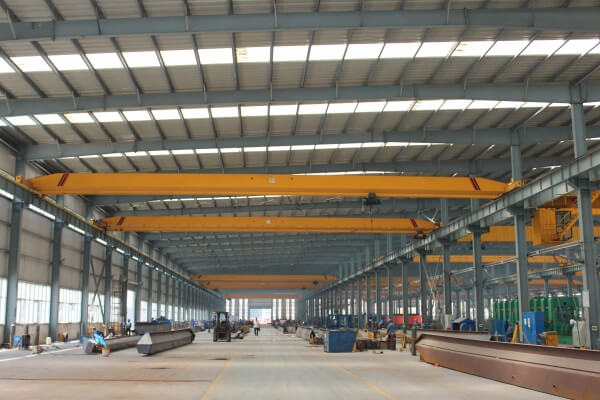

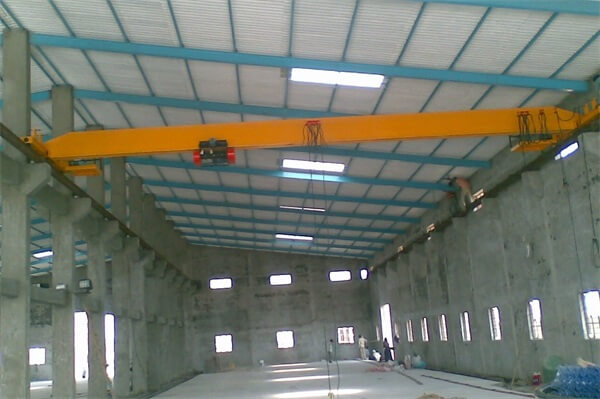

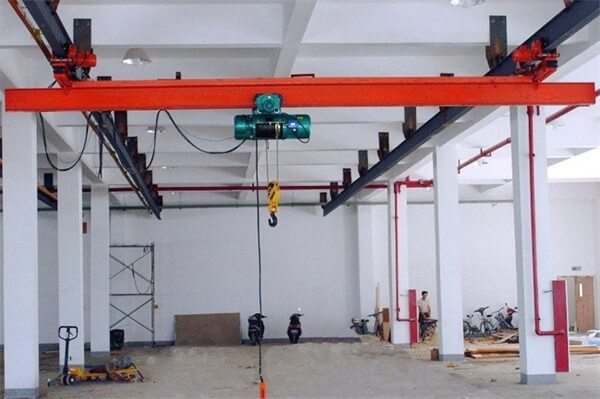

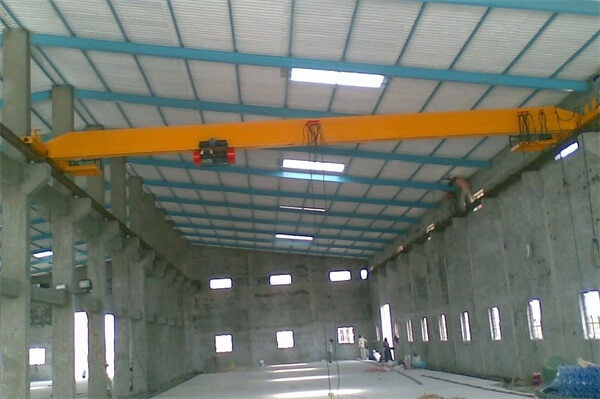

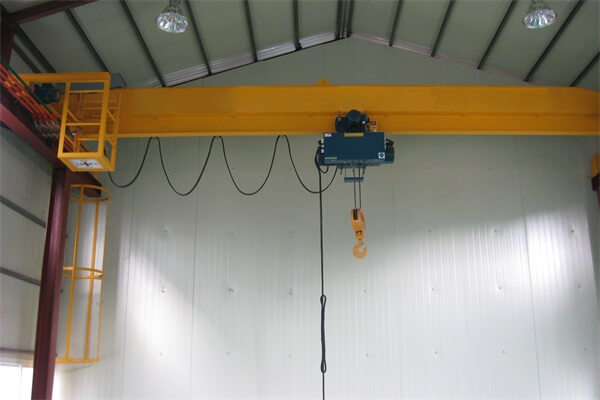

Product Display
