Low Headroom Overhead Crane

Low Headroom Overhead Crane

Span: 6-20m

Lifting height: 6-12m

Working Class: A1~A3

Ambient Temp: -25~40℃

Product Overview

Low Headroom Single Girder Overhead Crane is a light duty material handling equipment, designed for low headroom workshop application. The low headroom overhead crane is designed with special structure that the electric hoist is placed at one side of the girder, so that the lifting space of hook is increased which could lower the requirement to building height and construction production costs.

The main operating method is ground control(ground control、remote control、ground control + remote control).

It features light structure and easy installation and maintenance, this crane is widely used in the workshop where the headroom is low and the lifting height is high, such as factories, warehouses and material yards.

Product Specifications

Capacity T 3
Span m 7.5 11.5 14.5 17.5 19.5 22.5
Lifting height m 6、 9、 12、
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20 、30
Crane travelling speed m/min 20 30
Total weight kg 2705 3519 4278 5066 5422 6877
Max. Wheel load KN 20.1 23.38 24.51 28.05 29.02 32.93
Rail recommended Model 24kg/m
Total motor power kw 4.9
Main dimension (mm) Span(m) 7.5 11.5 14.5 17.5 19.5 22.5
Rail top to crane top H 1065 1130 1180 1230 1300
Rail top to hook center H4 -130 -65 -15 35 105
Crane base distance W 2500 3000 3500
Crane width B 3000 3500 4000
Hook left limitation S1 1413
Hook right limitation S2 1496
Capacity T 5
Span m 7.5 11.5 14.5 17.5 19.5 22.5
Lifting height m 6、 9、 12、
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20 、30
Crane travelling speed m/min 20 30
Total weight kg 3175 4000 4366 6066 6514 7507
Max. Wheel load KN 29.7 33.7 36.47 40.13 41.49 44.27
Rail recommended Model 24kg/m
Total motor power kw 8.3
Main dimension (mm) Span(m) 7.5 11.5 14.5 17.5 19.5 22.5
Rail top to crane top H 1170 1255 1280 1360 1410
Rail top to hook center H4 -175 -90 -65 15 65
Crane base distance W 2500 3000 3500
Crane width B 3000 3500 4000
Hook left limitation S1 1405
Hook right limitation S2 1496
Capacity T 10
Span m 7.5 11.5 14.5 17.5 19.5 22.5
Lifting height m 6、 9、 12、
Lifting speed m/min 8 or 8/0.8
Hoist travelling speed m/min 20 、30
Crane travelling speed m/min 20 30
Total weight kg 4047 5378 6542 7741 8312 9804
Max. Wheel load KN 49.78 57.88 62.64 66.83 68.83 73.2
Rail recommended Model 24kg/m
Total motor power kw 13.8
Main dimension (mm) Span(m) 7.5 11.5 14.5 17.5 19.5 22.5
Rail top to crane top H 1075 1195 1305 1385 1475
Rail top to hook center H4 -175 -90 -65 15 65
Crane base distance W 2500 3000 3500
Crane width B 3000 3500 4000
Hook left limitation S1 1840
Hook right limitation S2 1840

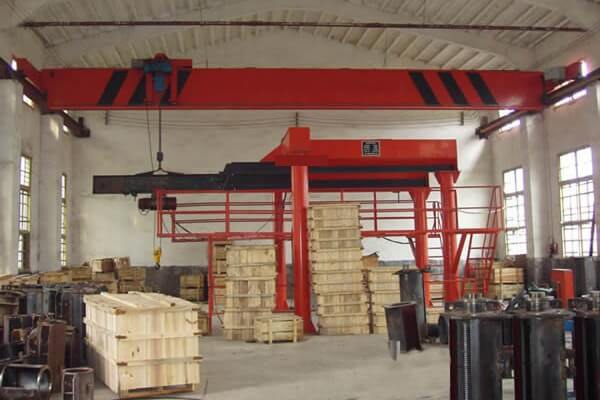

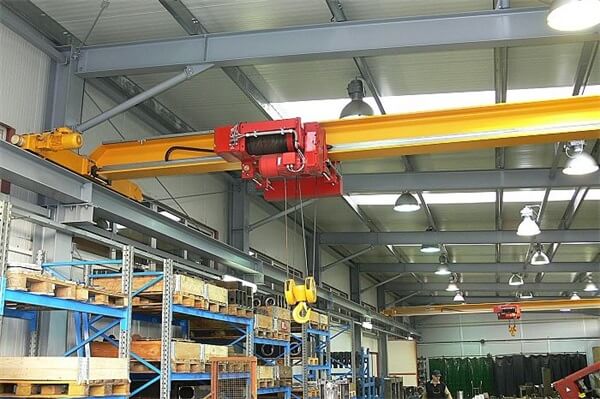

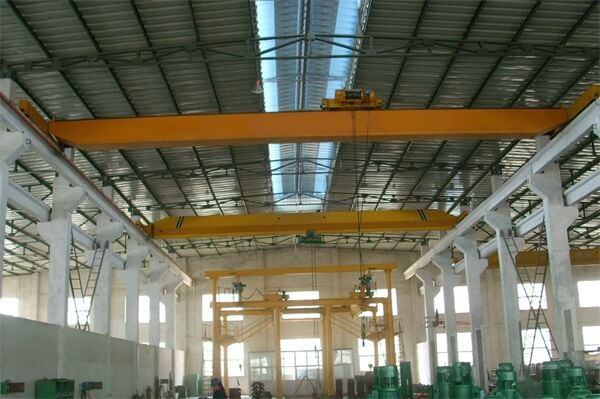

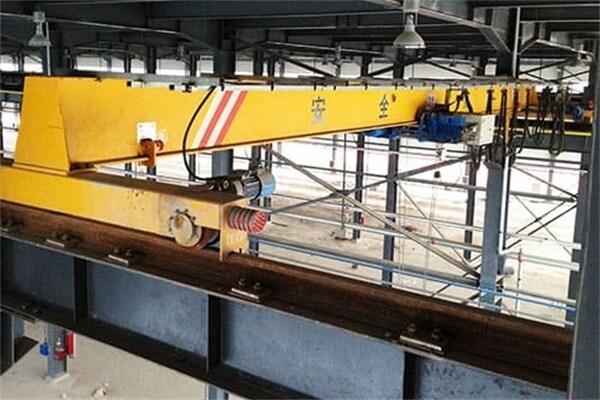

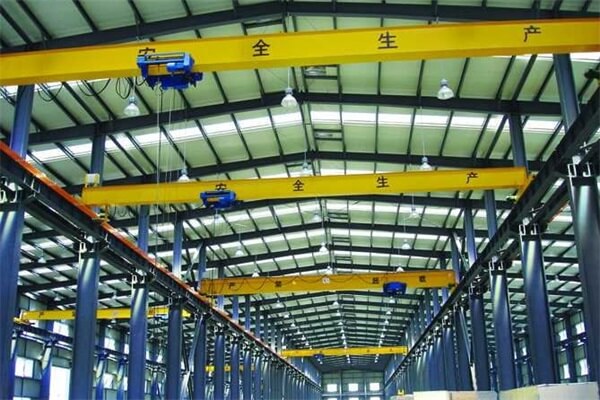

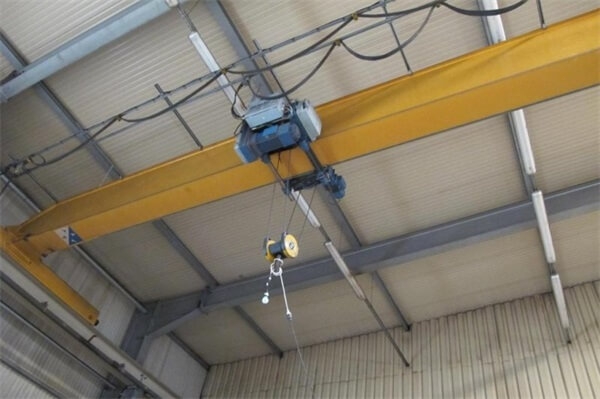

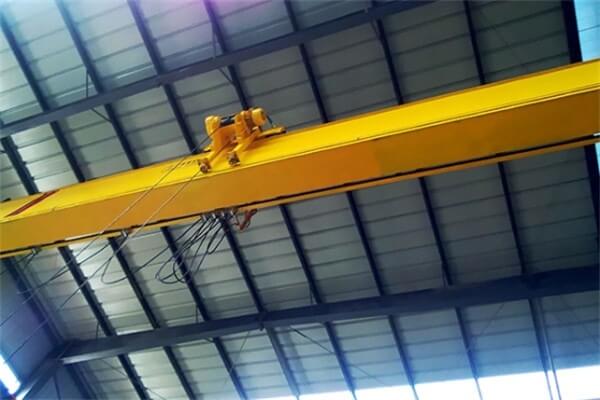

Product Display
