Single Girder Overhead Crane with Grab

Single Girder Overhead Crane with Grab

Lifting Capacity: 2~10t

Span: 4~25m

Lifting Height: 6~18m

Working Class: A4

Product Overview

The Single Girder Overhead Crane with Grab is usually used to grab and lift common materials, with a capacity of 2 to 10 tons. The span is 4 to 25 meters. Working duty not more than A4. Working temperature is -25°C to 40°C.

This single girder overhead crane with grab has advantages of compact structure, beautiful exterior, convenient for operating, economical and practical. And it's a perfect small equipment to grab materials.

Our technician will indicate to do the load test according to the overhead crane load test procedure, and we will provide free overhead crane operator training and overhead crane maintenance training for our clients.

Product Specifications

Capacity
T
1,2,3,5,10,16,20
Span
m
7.5
11.5
14.5
17.5
19.5
22.5
25.5
28.5
Lifting height
m
                          6、 9、 12、18、 24、 30
Lifting speed
m/min
0.35/3.5,0.7/7,0.8/8
Hoist travelling speed
m/min
20
Crane travelling speed
m/min
20,30
Max. Wheel load
KN
8.7
9.9
11
12.2
12.8
14
16.7
19.4
Rail recommended
Model
24kg/m
Total motor power
kw
1.7
Main dimension (mm)
Span(m)
7.5
11.5
14.5
17.5
19.5
22.5
25.5
28.5
Rail top to crane top
H
490
530
580
660
745
Rail top to hook center
H4
910
955
970
990
1010
Crane base distance
W
1500
2000
2000
2500
2500
3000
3500
4000
Crane width
B
2000
2500
2500
3000
3000
3500
4000
4500
Hook left limitation
S1
796
Hook right limitation
S2
1274

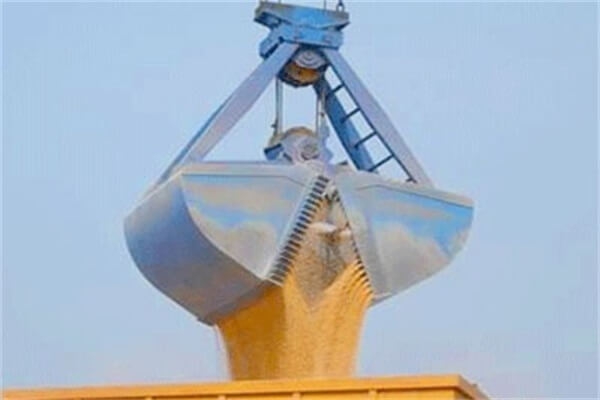

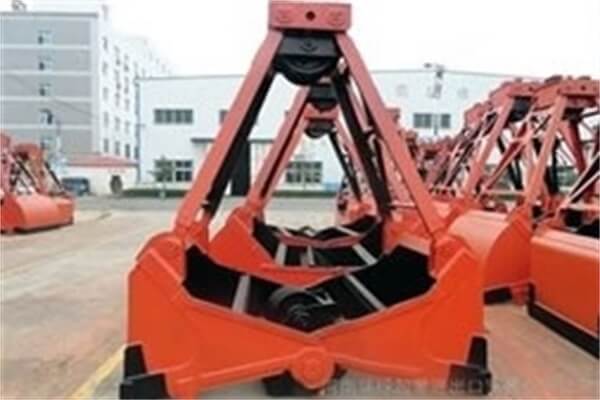

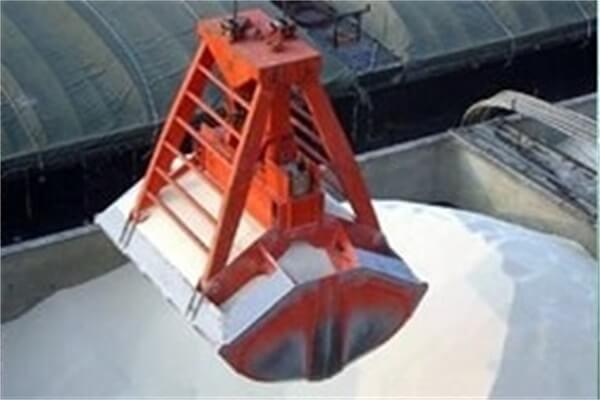

Product Display
